Lighting Pole plate & Frame

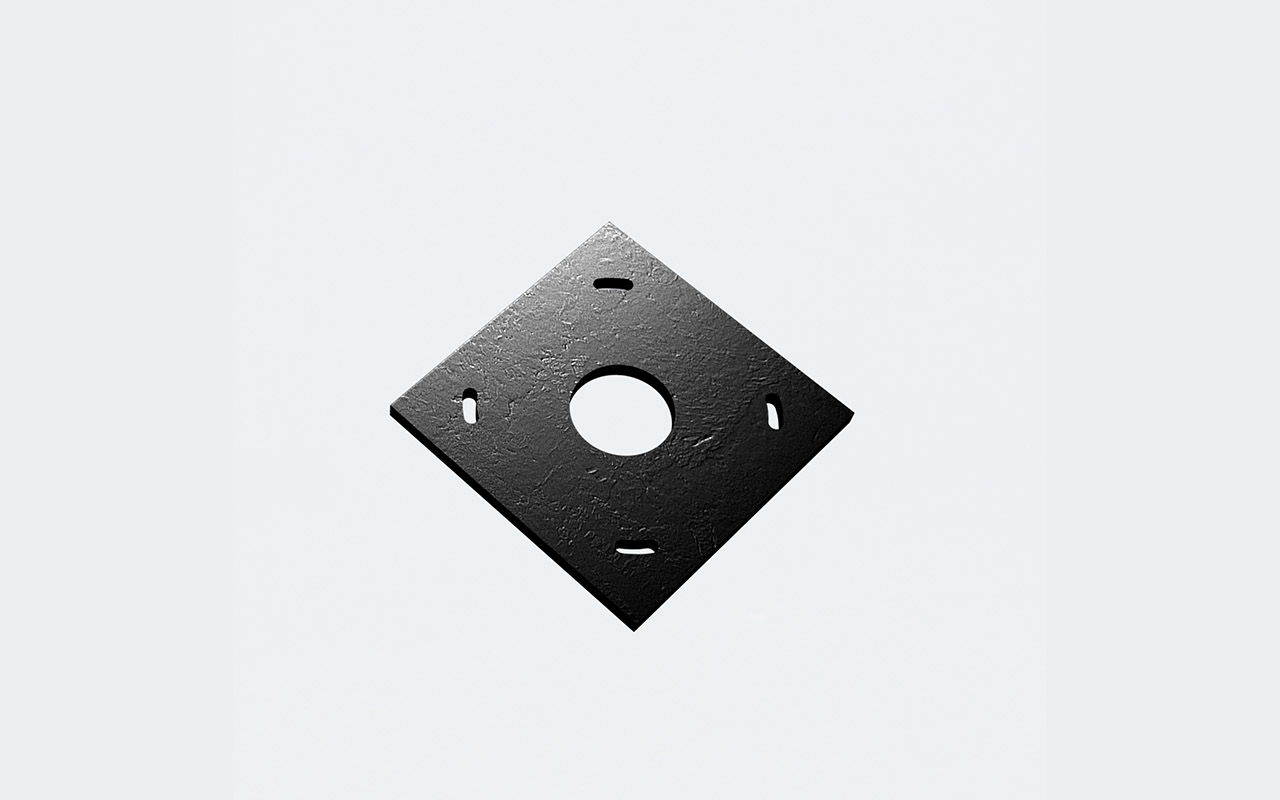

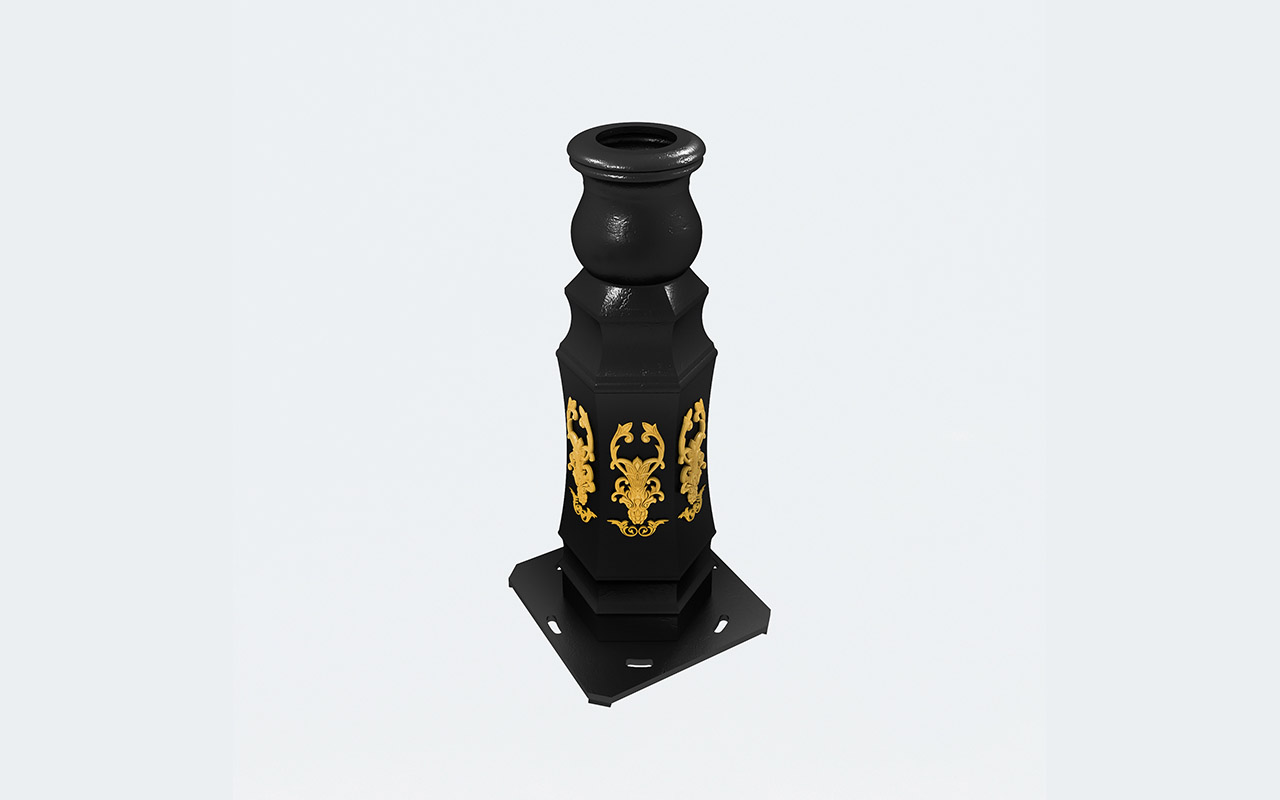

The most important application of the Base Plate is leveling the pole. In addition, the bottom flange is located between the base plate and frame. The Baseplate can be presented with 4 or 6 holes. The dimension of the base plate can change according to the request. Customized base plates according to customer needs are available.  Also, Various types of Frames are available for ductile iron poles. The Mechanism of lighting pole installation on the Foundation is described below:

Step 1: The base plate is leveled by adjustment of bottom nuts.

Step 2: bottom Flange of pole barrel located between base plate and frame.

Step 3: Top nuts and washers are tightened to level the pole barrel.
